Produce Series----WT-JC9225-01

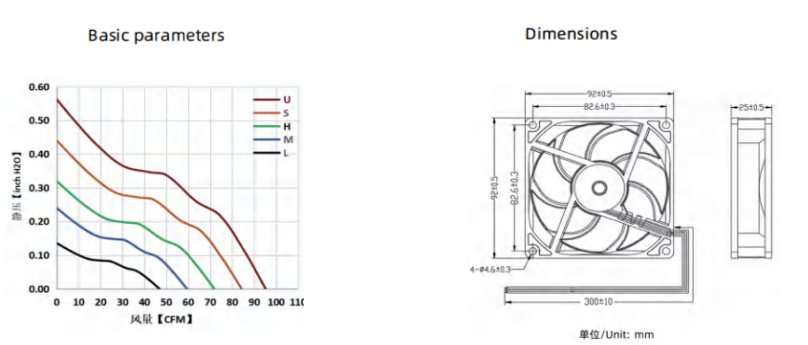

92×92×25mm
Produce Series…….…………WT-JC9225-01
Fan Blade Material………….. PBT 94V-0
Fan Frame Material…………… PBT 94V-0
Bearing Structure …… … Double ball bearing
Operation Temperature……….…-20℃-70℃
| WT-Model | WT-Reted voltage[ V ] | WT-Reted input[ W ] | WT-Air flow[ CFM ] | WT-Noise[ dBA ] | |||
| WT-JC9225B12L | 12 | 100 | 1.2 | 3000 | 46.8 | 0.136 | 31.3 |
| WT-JC9225B12M | 200 | 2.4 | 3800 | 59.3 | 0.240 | 36.2 | |
| WT-JC9225B12H | 358 | 4.3 | 4600 | 71.8 | 0.320 | 41.0 | |
| WT-JC9225B12S | 520 | 6.2 | 5400 | 84.3 | 0.441 | 44.9 | |
| WT-JC9225B12U | 800 | 9.6 | 5800 | 90.6 | 0.509 | 46.9 | |
| WT-JC9225B24L | 24 | 92 | 2.2 | 3000 | 46.8 | 0.136 | 31.3 |
| WT-JC9225B24M | 142 | 3.4 | 3800 | 59.3 | 0.240 | 36.2 | |
| WT-JC9225B24H | 180 | 4.3 | 4600 | 71.8 | 0.320 | 41.0 | |
| WT-JC9225B24S | 242 | 5.8 | 5400 | 84.3 | 0.441 | 44.9 | |
| WT-JC9225B24U | 380 | 9.1 | 5800 | 90.6 | 0.509 | 46.9 | |
| WT-JC9225B48L | 48 | 40 | 1.9 | 3000 | 46.8 | 0.136 | 31.3 |
| WT-JC9225B48M | 63 | 3.0 | 3800 | 59.3 | 0.240 | 36.2 | |
| WT-JC9225B48H | 98 | 4.7 | 4600 | 71.8 | 0.320 | 41.0 | |
| WT-JC9225B48S | 130 | 6.2 | 5400 | 84.3 | 0.441 | 44.9 | |
| WT-JC9225B48U | 210 | 10.1 | 5800 | 90.6 | 0.509 | 46.9 | |
Customization Notice
The above products support customized design requirements. Please contact our sales team for details.
Note: Design changes for the above products will not be notified separately. Please refer to the specification approval document for the latest information.
