Walmate Fans

Our high-quality and stable fans are made with advanced manufacturing processes and high-quality materials, ensuring long-term stable operation in various environments. These fans not only have excellent heat dissipation effects, but also effectively reduce noise and enhance user experience. Its precise design and high efficiency provide comprehensive support for the entire heat exchange system, ensuring that the equipment remains in optimal condition even under high load operation.

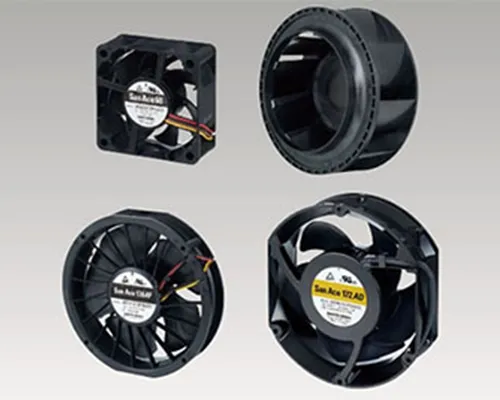

WalmateThermal offers different types of fans

We are dedicated to providing customers with diverse AC and DC fan solutions to meet different application needs.For AC fans, we meticulously design power drivers and chip protection modules to ensure stable current, enabling rapid startup and strong air volume/pressure. This efficiently meets the forced convection and cooling requirements of various electronic components. The air duct is optimized using advanced fluid software, and the fan blades undergo multiple simulation tests to achieve an ideal PQ curve, ensuring excellent performance. Additionally, the fans are made of eco-friendly PC material, ensuring structural stability and safety, while achieving low power consumption and low noise operation, which is particularly advantageous in industrial ventilation and large equipment cooling scenarios.DC fans focus on precise temperature control, silent operation, and energy efficiency. They can automatically adjust air volume based on ambient temperature, effectively addressing noise-sensitive scenarios such as office spaces and PC host cooling. We support customized services, flexibly designing from performance parameters to appearance structures according to customer needs, providing professional and reliable heat dissipation and ventilation solutions.

Specification

Model	Reted voltage [ V ]	Reted current [mA]	Reted input [ W ]	Reted speed [ R.P.M ]	Air flow [ CFM ]	Statc pressure [ inchH20 ]	Noise [ dBA ]
WT-JC3010B5L	5	30	0.15	6000	2.2	0.070	18.5
WT-JC3010B5M		50	0.25	7800	2.9	0.118	21.9
WT-JC3010B5H		70	0.35	9000	3.3	0.157	24.0
WT-JC3010B5S		140	0.70	10500	3.9	0.214	26.2
WT-JC3010B5U		200	1.00	12000	4.5	0.274	31.0
WT-JC3010B12L	12	13	0.15	6000	2.2	0.070	18.5
WT-JC3010B12M		21	0.25	7800	2.9	0.118	21.9
WT-JC3010B12H		29	0.35	9000	3.3	0.157	24.0
WT-JC3010B12S		50	0.60	10500	3.9	0.214	26.2
WT-JC3010B12U		83	1.00	12000	4.5	0.274	31.0
WT-JC3010B24S	24	33	0.80	10500	3.9	0.214	26.2
WT-JC3010B24U	24	46	1.10	12000	4.5	0.274	31.0
WT-JC4010B5L	5	260	0.30	5000	5.2	0.071	21.4
WT-JC4010B5M		100	0.50	6600	6.9	0.123	27.4
WT-JC4010B5H		180	0.90	8000	8.4	0.181	31.5
WT-JC4010B5S		220	1.10	9000	9.4	0.229	34.0
WT-JC4010B5U		300	1.50	10000	10.5	0.282	36.3
WT-JC4010B12L	12	28	0.33	5000	5.2	0.071	21.4
WT-JC4010B12M		46	0.55	6600	6.9	0.123	27.4
WT-JC4010B12H		83	1.00	8000	8.4	0.181	31.5
WT-JC4010B12S		100	1.20	9000	9.4	0.229	34.0
WT-JC4010B12U		133	1.60	10000	10.5	0.282	36.3
WT-JC4010B24L	24	15	0.36	5000	5.2	0.071	21.4
WT-JC4010B24M		40	0.55	6600	6.9	0.123	27.4
WT-JC4010B24H		42	1.00	8000	8.4	0.181	31.5
WT-JC4010B24S		50	1.20	9000	9.4	0.229	34.0
WT-JC4010B24U		71	1.70	10000	10.5	0.282	36.3
WT-JC4020B5L	5	68	0.34	4200	4.11	0.094	19.4
WT-JC4020B5M		137	0.68	7600	7.43	0.307	29
WT-JC4020B5H		209	1.05	9600	9.39	0.457	34.7
WT-JC4020B5S		433	2.17	12800	12.52	0.746	42.2
WT-JC4020B5U		684	3.42	16000	15.65	1.155	48.4
WT-JC4020B12L	12	30	0.36	4200	4.11	0.094	19.4
WT-JC4020B12M		60	0.72	7600	7.43	0.307	29
WT-JC4020B12H		92	1.10	9600	9.39	0.457	34.7
WT-JC4020B12S		190	2.28	12800	12.52	0.746	42.2
WT-JC4020B12U		300	3.60	16000	15.65	1.155	48.4
WT-JC4020B24L	24	17	0.40	4200	4.11	0.094	19.4
WT-JC4020B24M		33	0.79	7600	7.43	0.307	29
WT-JC4020B24H		50	1.21	9600	9.39	0.457	34.7
WT-JC4020B24S		105	2.51	12800	12.52	0.746	42.2
WT-JC4020B24U		165	3.96	16000	15.65	1.155	48.4
WT-JC4028B5L	5	143	1.71	9500	10.86	0.598	39.6
WT-JC4028B5M		342	1.80	14500	16.57	1.334	48.6
WT-JC4028B5H		428	5.13	17500	20	1.854	53.5
WT-JC4028B5S		694	8.32	21000	24	2.543	60.3
WT-JC4028B5U		1188	14.25	24600	28.12	3.489	63.7
WT-JC4028B12L	24	75	1.80	9500	10.86	0.598	39.6
WT-JC4028B12M		180	4.32	14500	16.57	1.334	48.6
WT-JC4028B12H		225	5.40	17500	20	1.854	53.5
WT-JC4028B12S		365	8.76	21000	24	2.543	60.3
WT-JC4028B12U		625	15.00	24600	28.12	3.489	63.7
WT-JC4028B24L	48	50	2.40	9500	10.86	0.598	39.6
WT-JC4028B24M		105	5.04	14500	16.57	1.334	48.6
WT-JC4028B24H		150	7.20	17500	20	1.854	53.5
WT-JC4028B24S		200	9.60	21000	24	2.543	60.3
WT-JC4028B24U		310	14.88	24600	28.12	3.489	63.7
WT-JC4028B12L	12	80	1.0	7500	9.19	0.305	30.5
WT-JC4028B12M		180	2.2	9000	11.03	0.420	34.5
WT-JC4028B12H		300	3.6	12000	14.70	0.713	41.2
WT-JC4028B12S		400	4.8	16000	19.60	1.207	49.6
WT-JC4028B12U		1000	12.0	20000	24.50	1.886	54.5
WT-JC4028B24L	24	50	1.2	7500	9.19	0.305	30.5
WT-JC4028B24M		100	2.4	9000	11.03	0.420	34.5
WT-JC4028B24H		160	3.8	12000	14.70	0.713	41.2
WT-JC4028B24S		210	5.0	16000	19.60	1.207	49.6
WT-JC4028B24U		500	12.0	20000	24.50	1.886	54.5
WT-JC4028B48L	48	30	1.4	7500	9.19	0.305	30.5
WT-JC4028B48M		50	2.4	9000	11.03	0.420	34.5
WT-JC4028B48H		100	4.8	12000	14.70	0.713	41.2
WT-JC4028B48S		150	7.2	16000	19.60	1.207	49.6
WT-JC4028B48U		300	14.4	20000	24.50	1.886	54.5
WT-JC5010B5L	5	80	0.40	3800	7.9	0.053	21.5
WT-JC5010B5M		96	0.48	4500	9.4	0.074	25.2
WT-JC5010B5H		160	0.80	5100	10.6	0.095	27.9
WT-JC5010B5S		200	1.00	5800	12.1	0.122	30.7
WT-JC5010B5U		260	1.30	6500	13.5	0.151	33.1
WT-JC5010B12L	12	33	0.40	3800	7.9	0.053	21.5
WT-JC5010B12M		40	0.48	4500	9.4	0.074	25.2
WT-JC5010B12H		67	0.80	5100	10.6	0.095	27.9
WT-JC5010B12S		83	1.00	5800	12.1	0.122	30.7
WT-JC5010B12U		108	1.30	6500	13.5	0.151	33.1
WT-JC5010B24L	24	21	0.40	3800	7.9	0.053	21.5
WT-JC5010B24M		40	0.48	4500	9.4	0.074	25.2
WT-JC5010B24H		42	0.80	5100	10.6	0.095	27.9
WT-JC5010B24S		50	1.00	5800	12.1	0.122	30.7
WT-JC5010B24U		54	1.30	6500	13.5	0.151	33.1
WT-JC5215B12L	12	42	0.5	4000	8.9	0.107	20
WT-JC5215B12M		50	0.6	5200	11.6	0.180	30.7
WT-JC5215B12H		92	1.1	6400	14.2	0.273	34.5
WT-JC5215B12S		133	1.6	7900	17.6	0.416	39.0
WT-JC5215B12U		192	2.3	9000	20.7	0.540	42.6
WT-JC5215B24L	24	25	0.6	4000	8.9	0.107	20
WT-JC5215B24M		29	0.7	5200	11.6	0.180	30.7
WT-JC5215B24H		50	1.2	6400	14.2	0.273	34.5
WT-JC5215B24S		71	1.7	7900	17.6	0.416	39.0
WT-JC5215B24U		100	2.4	9000	20.7	0.540	42.6
WT-JC5215B48L	48	15	0.7	4000	8.9	0.107	20
WT-JC5215B48M		17	0.8	5200	11.6	0.180	30.7
WT-JC5215B48H		27	1.3	6400	14.2	0.273	34.5
WT-JC5215B48S		38	1.8	7900	17.6	0.416	39.0
WT-JC5215B48U		52	2.5	9000	20.7	0.540	42.6
WT-JC6010B5L	5	50	0.30	3000	10.9	0.056	22.2
WT-JC6010B5M		80	0.40	3800	13.8	0.089	27.3
WT-JC6010B5H		120	0.60	4500	16.3	0.125	31.0
WT-JC6010B5S		180	0.90	5000	18.1	0.155	32.9
WT-JC6010B5U		280	1.40	5600	20.3	0.194	35.0
WT-JC6010B12L	12	25	0.30	3000	10.9	0.056	22.2
WT-JC6010B12M		33	0.40	3800	13.8	0.089	27.3
WT-JC6010B12H		58	0.70	4500	16.3	0.125	31.0
WT-JC6010B12S		83	1.00	5000	18.1	0.155	32.9
WT-JC6010B12U		125	1.50	5600	20.3	0.194	35.0
WT-JC6010B24L	24	14	0.33	3000	10.9	0.056	22.2
WT-JC6010B24M		40	0.44	3800	13.8	0.089	27.3
WT-JC6010B24H		32	0.77	4500	16.3	0.125	31.0
WT-JC6010B24S		50	1.20	5000	18.1	0.155	32.9
WT-JC6010B24U		83	2.00	5600	20.3	0.194	35.0
WT-JC6015B5L	5	60	0.3	2600	13.7	0.052	19.5
WT-JC6015B5M		120	0.6	3000	15.9	0.069	21.8
WT-JC6015B5H		200	1.0	3900	20.6	0.116	27.5
WT-JC6015B5S		380	1.9	4700	24.8	0.169	32.4
WT-JC6015B5U		660	3.3	5500	29.1	0.231	35.8
WT-JC6015B12L	12	28	0.3	2600	13.7	0.052	19.5
WT-JC6015B12M		50	0.6	3000	15.9	0.069	21.8
WT-JC6015B12H		83	1.0	3900	20.6	0.116	27.5
WT-JC6015B12S		158	1.9	4700	24.8	0.169	32.4
WT-JC6015B12U		275	3.3	5500	29.1	0.231	35.8
WT-JC6015B24L	24	13	0.3	2600	13.7	0.052	19.5
WT-JC6015B24M		25	0.6	3000	15.9	0.069	21.8
WT-JC6015B24H		42	1.0	3900	20.6	0.116	27.5
WT-JC6015B24S		79	1.9	4700	24.8	0.169	32.4
WT-JC6015B24U		138	3.3	5500	29.1	0.231	35.8
WT-JC6025B12L	12	90	1.1	3800	20.9	0.186	33.5
WT-JC6025B12M		206	2.5	5000	27.5	0.323	40.4
WT-JC6025B12H		432	5.2	6400	35.3	0.529	46.7
WT-JC6025B12S		782	9.4	7800	43.0	0.785	52.3
WT-JC6025B12U		1244	14.9	9400	51.8	1.141	58.6
WT-JC6025B24L	24	50	1.2	3800	20.9	0.186	33.5
WT-JC6025B24M		113	2.7	5000	27.5	0.323	40.4
WT-JC6025B24H		238	5.7	6400	35.3	0.529	46.7
WT-JC6025B24S		430	10.3	7800	43.0	0.785	52.3
WT-JC6025B24U		684	16.4	9400	51.8	1.141	58.6
WT-JC6025B48L	48	27	1.3	3800	20.9	0.186	33.5
WT-JC6025B48M		62	3.0	5000	27.5	0.323	40.4
WT-JC6025B48H		131	6.3	6400	35.3	0.529	46.7
WT-JC6025B48S		237	11.4	7800	43.0	0.785	52.3
WT-JC6025B48U		376	18.1	9400	51.8	1.141	58.6
WT-JC6025B12L	12	180	2.2	4800	21.7	0.240	33.2
WT-JC6025B12M		358	4.3	6500	29.4	0.440	40.2
WT-JC6025B12H		450	5.4	8200	37.1	0.680	46.0
WT-JC6025B12S		700	8.4	9800	44.4	0.972	50.3
WT-JC6025B12U		1300	15.6	12000	54.4	1.428	55.2
WT-JC6025B24L	24	90	2.2	4800	21.7	0.240	33.2
WT-JC6025B24M		200	4.8	6500	29.4	0.440	40.2
WT-JC6025B24H		240	5.8	8200	37.1	0.680	46.0
WT-JC6025B24S		350	8.4	9800	44.4	0.972	50.3
WT-JC6025B24U		630	15.1	12000	54.4	1.428	55.2
WT-JC6025B48L	48	60	2.9	4800	21.7	0.240	33.2
WT-JC6025B48M		90	4.3	6500	29.4	0.440	40.2
WT-JC6025B48H		150	7.2	8200	37.1	0.680	46.0
WT-JC6025B48S		260	12.5	9800	44.4	0.972	50.3
WT-JC6025B48U		420	20.2	12000	54.4	1.428	55.2
WT-JC8025B12L	12	67	0.8	3000	38.7	0.141	32.2
WT-JC8025B12M		167	2.0	3800	49.1	0.222	37.8
WT-JC8025B12H		283	3.4	4600	59.4	0.326	42.9
WT-JC8025B12S		583	7.0	5600	72.3	0.483	48.4
WT-JC8025B12U		717	8.6	6400	80.2	0.624	53.3
WT-JC8025B24L	24	71	1.7	3000	38.7	0.141	32.2
WT-JC8025B24M		121	2.9	3800	49.1	0.222	37.8
WT-JC8025B24H		171	4.1	4600	59.4	0.326	42.9
WT-JC8025B24S		300	7.2	5600	72.3	0.483	48.4
WT-JC8025B24U		379	9.1	6400	80.2	0.624	53.3
WT-JC8025B48L	48	29	1.4	3000	38.7	0.141	32.2
WT-JC8025B48M		50	2.4	3800	49.1	0.222	37.8
WT-JC8025B48H		71	3.4	4600	59.4	0.326	42.9
WT-JC8025B48S		121	5.8	5600	72.3	0.483	48.4
WT-JC8025B48U		160	7.7	6400	80.2	0.624	53.3
WT-JC8038B12L	12	489	5.9	7000	56.0	0.929	52.7
WT-JC8038B12M		875	10.5	8500	68.0	1.370	56.9
WT-JC8038B12H		1222	147.0	9500	76.0	1.711	59.3
WT-JC8038B12S		1650	19.8	10500	84.0	2.090	61.5
WT-JC8038B12U		2239	26.9	12000	96.0	2.730	64.4
WT-JC8038B24L	24	269	6.5	7000	56.0	0.929	52.7
WT-JC8038B24M		481	11.6	8500	68.0	1.370	56.9
WT-JC8038B24H		672	16.1	9500	76.0	1.711	59.3
WT-JC8038B24S		908	21.8	10500	84.0	2.090	61.5
WT-JC8038B24U		1231	29.6	12000	96.0	2.730	64.4
WT-JC8038B48L	48	148	7.1	7000	56.0	0.929	52.7
WT-JC8038B48M		265	12.7	8500	68.0	1.370	56.9
WT-JC8038B48H		370	17.7	9500	76.0	1.711	59.3
WT-JC8038B48S		499	24.0	10500	84.0	2.090	61.5
WT-JC8038B48U		677	32.5	12000	96.0	2.730	64.4
WT-JC9225B12L	12	100	1.2	3000	46.8	0.136	31.3
WT-JC9225B12M		200	2.4	3800	59.3	0.240	36.2
WT-JC9225B12H		358	4.3	4600	71.8	0.320	41.0
WT-JC9225B12S		520	6.2	5400	84.3	0.441	44.9
WT-JC9225B12U		800	9.6	5800	90.6	0.509	46.9
WT-JC9225B24L	24	92	2.2	3000	46.8	0.136	31.3
WT-JC9225B24M		142	3.4	3800	59.3	0.240	36.2
WT-JC9225B24H		180	4.3	4600	71.8	0.320	41.0
WT-JC9225B24S		242	5.8	5400	84.3	0.441	44.9
WT-JC9225B24U		380	9.1	5800	90.6	0.509	46.9
WT-JC9225B48L	48	40	1.9	3000	46.8	0.136	31.3
WT-JC9225B48M		63	3.0	3800	59.3	0.240	36.2
WT-JC9225B48H		98	4.7	4600	71.8	0.320	41.0
WT-JC9225B48S		130	6.2	5400	84.3	0.441	44.9
WT-JC9225B48U		210	10.1	5800	90.6	0.509	46.9
WT-JC9238B12L	12	600	7.2	5800	82.4	0.746	48.9
WT-JC9238B12M		1100	13.2	7800	110.8	1.260	55
WT-JC9238B12H		1400	16.8	9000	127.8	1.588	59.2
WT-JC9238B12S		2050	24.6	10500	149.1	2.141	63.1
WT-JC9238B12U		3040	36.5	12000	170.4	2.663	67.3
WT-JC9238B24L	24	221	5.3	5800	82.4	0.746	48.9
WT-JC9238B24M		471	11.3	7800	110.8	1.260	55
WT-JC9238B24H		621	14.9	9000	127.8	1.588	59.2
WT-JC9238B24S		1100	26.4	10500	149.1	2.141	63.1
WT-JC9238B24U		1600	38.4	12000	170.4	2.663	67.3
WT-JC9238B48L	48	110	5.3	5800	82.4	0.746	48.9
WT-JC9238B48M		210	10.1	7800	110.8	1.260	55
WT-JC9238B48H		321	15.4	9000	127.8	1.588	59.2
WT-JC9238B48S		510	24.5	10500	149.1	2.141	63.1
WT-JC9238B48U		700	33.6	12000	170.4	2.663	67.3
WT-JC12025B12L	12	567	6.8	4100	133.6	0.355	49.9
WT-JC12025B12M		933	11.2	4600	149.9	0.447	52.9
WT-JC12025B12H		1317	15.8	5000	162.9	0.528	55.3
WT-JC12025B12S		1708	20.5	5400	176.0	0.615	56.9
WT-JC12025B12U		2300	27.6	5700	185.7	0.686	58.1
WT-JC12025B24L	24	292	7.0	4100	133.6	0.355	49.9
WT-JC12025B24M		479	11.5	4600	149.9	0.447	52.9
WT-JC12025B24H		667	16.0	5000	162.9	0.528	55.3
WT-JC12025B24S		875	21.0	5400	176.0	0.615	56.9
WT-JC12025B24U		1300	31.2	5700	185.7	0.686	58.1
WT-JC12025B48L	48	160	7.7	4100	133.6	0.355	49.9
WT-JC12025B48M		265	12.7	4600	149.9	0.447	52.9
WT-JC12025B48H		367	17.6	5000	162.9	0.528	55.3
WT-JC12025B48S		481	23.1	5400	176.0	0.615	56.9
WT-JC12025B48U		625	30.0	5700	185.7	0.686	58.1
WT-JC12038B12L	12	483	5.8	3000	131.8	0.343	45.3
WT-JC12038B12M		820	9.8	3600	158.1	0.494	49.6
WT-JC12038B12H		1200	14.4	4100	180.1	0.640	53.0
WT-JC12038B12S		1600	19.2	4600	202.0	0.806	55.5
WT-JC12038B12U		2600	31.2	5200	228.4	1.030	58.1
WT-JC12038B24L	24	240	5.8	3000	131.8	0.343	45.3
WT-JC12038B24M		400	9.6	3600	158.1	0.494	49.6
WT-JC12038B24H		629	15.1	4100	180.1	0.640	53.0
WT-JC12038B24S		779	18.7	4600	202.0	0.806	55.5
WT-JC12038B24U		1300	31.2	5200	228.4	1.030	58.1
WT-JC12038B48L	48	110	5.3	3000	131.8	0.343	45.3
WT-JC12038B48M		180	8.6	3600	158.1	0.494	49.6
WT-JC12038B48H		250	12.0	4100	180.1	0.640	53.0
WT-JC12038B48S		321	15.4	4600	202.0	0.806	55.5
WT-JC12038B48U		480	23.0	5200	228.4	1.030	58.1
WT-JC14038B12L	12	751	9.0	4100	147.0	0.560	52.6
WT-JC14038B12M		1061	12.7	4600	164.9	0.705	55.0
WT-JC14038B12H		1532	18.4	5200	186.4	0.901	58.2
WT-JC14038B12S		2018	24.2	5700	204.3	1.083	60.2
WT-JC14038B12U		2721	32.6	6500	233.0	1.408	63.6
WT-JC14038B24L	24	413	9.9	4100	147.0	0.560	52.6
WT-JC14038B24M		583	14.0	4600	164.9	0.705	55.0
WT-JC14038B24H		843	20.2	5200	186.4	0.901	58.2
WT-JC14038B24S		1110	26.6	5700	204.3	1.083	60.2
WT-JC14038B24U		1496	35.9	6500	233.0	1.408	63.6
WT-JC14038B48L	48	227	10.9	4100	147.0	0.560	52.6
WT-JC14038B48M		321	15.4	4600	164.9	0.705	55.0
WT-JC14038B48H		463	22.2	5200	186.4	0.901	58.2
WT-JC14038B48S		610	29.3	5700	204.3	1.083	60.2
WT-JC14038B48U		823	39.5	6500	233.0	1.408	63.6
WT-JC17251B12L	12	751	9.0	4000	269.1	0.776	55.9
WT-JC17251B12M		1061	12.7	4500	302.8	0.983	59.2
WT-JC17251B12H		1532	18.4	5000	336.4	1.213	65.6
WT-JC17251B12S		2018	24.2	5500	370.0	1.468	67.7
WT-JC17251B12U		2721	32.6	6200	417.1	1.865	71.0
WT-JC17251B24L	24	413	9.9	4000	269.1	0.776	55.9
WT-JC17251B24M		583	14.0	4500	302.8	0.983	59.2
WT-JC17251B24H		843	20.2	5000	336.4	1.213	65.6
WT-JC17251B24S		1110	26.6	5500	370.0	1.468	67.7
WT-JC17251B24U		1496	35.9	6200	417.1	1.865	71.0
WT-JC17251B48L	48	227	10.9	4000	269.1	0.776	55.9
WT-JC17251B48M		321	15.4	4500	302.8	0.983	59.2
WT-JC17251B48H		463	22.2	5000	336.4	1.213	65.6
WT-JC17251B48S		610	29.3	5500	370.0	1.468	67.7
WT-JC17251B48U		823	39.5	6200	417.1	1.865	71.0
WT-JB3010B5L	5	42	0.2	6000	0.8	0.146	22.7
WT-JB3010B5M		61	0.3	6800	0.9	0.188	25.4
WT-JB3010B5H		85	0.4	7600	1.0	0.235	27.8
WT-JB3010B5S		115	0.6	8400	1.2	0.287	30.0
WT-JB3010B5U		128	0.6	9000	1.2	0.329	31.5
WT-JB3010B12L	12	413	0.2	6000	0.8	0.146	22.7
WT-JB3010B12M		583	0.3	6800	0.9	0.188	25.4
WT-JB3010B12H		843	0.5	7600	1.0	0.235	27.8
WT-JB3010B12S		1110	0.6	8400	1.2	0.287	30.0
WT-JB3010B12U		1496	0.7	9000	1.2	0.329	31.5
WT-JB4010B5L	5	63	0.3	5800	1.4	0.172	27.7
WT-JB4010B5M		93	0.5	6600	1.6	0.234	30.5
WT-JB4010B5H		131	0.7	7400	1.8	0.294	33.0
WT-JB4010B5S		178	0.9	8200	2.0	0.361	35.2
WT-JB4010B5U		214	1.1	9000	2.2	0.434	37.2
WT-JB4010B12L	12	29	0.3	5800	1.4	0.172	27.7
WT-JB4010B12M		42	0.5	6600	1.6	0.234	30.5
WT-JB4010B12H		60	0.7	7400	1.8	0.294	33.0
WT-JB4010B12S		82	1.0	8200	2.0	0.361	35.2
WT-JB4010B12U		98	1.2	9000	2.2	0.434	37.2
WT-JB4010B24L	24	16	0.4	5800	1.4	0.172	27.7
WT-JB4010B24M		23	0.6	6600	1.6	0.234	30.5
WT-JB4010B24H		33	0.8	7400	1.8	0.294	33.0
WT-JB4010B24S		45	1.1	8200	2.0	0.361	35.2
WT-JB4010B24U		54	1.3	9000	2.2	0.434	37.2
WT-JB4020B5L	5	104	0.5	5800	2.3	0.296	30.1
WT-JB4020B5M		167	0.8	6600	2.8	0.427	33.6
WT-JB4020B5H		253	1.3	7400	3.2	0.562	36.5
WT-JB4020B5S		388	1.9	9000	3.7	0.748	39.7
WT-JB4020B5U		560	2.8	10500	4.3	1.019	43.0
WT-JB4020B12L	12	48	0.6	5800	2.3	0.296	30.1
WT-JB4020B12M		77	0.9	6600	2.8	0.427	33.6
WT-JB4020B12H		116	1.4	7400	3.2	0.562	36.5
WT-JB4020B12S		178	2.1	9000	3.7	0.748	39.7
WT-JB4020B12U		257	3.1	10500	4.3	1.019	43.0
WT-JB4020B24L	24	26	0.6	5800	2.3	0.296	30.1
WT-JB4020B24M		42	1.0	6600	2.8	0.427	33.6
WT-JB4020B24H		64	1.5	7400	3.2	0.562	36.5
WT-JB4020B24S		98	2.3	9000	3.7	0.748	39.7
WT-JB4020B24U		141	3.4	10500	4.3	1.019	43.0
WT-JB5010B5L	5	154	0.8	3400	1.6	0.125	27.0
WT-JB5010B5M		250	1.3	4000	1.9	0.173	30.5
WT-JB5010B5H		381	1.9	4600	2.1	0.229	33.5
WT-JB5010B5S		550	2.8	5200	2.4	0.292	36.2
WT-JB5010B5U		694	3.5	5800	2.7	0.363	38.6
WT-JB5010B12L	12	70	0.8	3400	1.6	0.125	27.0
WT-JB5010B12M		115	1.4	4000	1.9	0.173	30.5
WT-JB5010B12H		175	2.1	4600	2.1	0.229	33.5
WT-JB5010B12S		252	3.0	5200	2.4	0.292	36.2
WT-JB5010B12U		318	3.8	5800	2.7	0.363	38.6
WT-JB5010B24L	24	39	0.9	3400	1.6	0.125	27.0
WT-JB5010B24M		63	1.5	4000	1.9	0.173	30.5
WT-JB5010B24H		96	2.3	4600	2.1	0.229	33.5
WT-JB5010B24S		139	3.3	5200	2.4	0.292	36.2
WT-JB5010B24U		175	4.2	5800	2.7	0.363	38.6
WT-JB5015B5L	5	56	0.3	3000	1.8	0.183	25.8
WT-JB5015B5M		132	0.7	4000	2.4	0.326	32.0
WT-JB5015B5H		274	1.4	5100	3.1	0.529	37.3
WT-JB5015B5S		492	2.5	6200	3.7	0.782	41.5
WT-JB5015B5U		760	3.8	7400	4.5	0.114	45.4
WT-JB5015B12L	12	26	0.3	3000	1.8	0.183	25.8
WT-JB5015B12M		61	0.7	4000	2.4	0.326	32.0
WT-JB5015B12H		125	1.5	5100	3.1	0.529	37.3
WT-JB5015B12S		225	2.7	6200	3.7	0.782	41.5
WT-JB5015B12U		348	4.2	7400	4.5	0.114	45.4
WT-JB5015B24L	24	14	0.3	3000	1.8	0.183	25.8
WT-JB5015B24M		33	0.8	4000	2.4	0.326	32.0
WT-JB5015B24H		69	4.7	5100	3.1	0.529	37.3
WT-JB5015B24S		124	3.0	6200	3.7	0.782	41.5
WT-JB5015B24U		192	4.6	7400	4.5	0.114	45.4
WT-JB8017B12L	12	41	0.5	1800	5.6	0.144	25.0
WT-JB8017B12M		75	0.9	2200	7.2	0.226	29.4
WT-JB8017B12H		124	1.5	2600	8.6	0.316	33.0
WT-JB8017B12S		191	2.3	3000	9.9	0.421	36.1
WT-JB8017B12U		253	3.0	3400	11.2	0.541	38.8
WT-JB8017B24L	24	23	0.5	1800	5.6	0.144	25.0
WT-JB8017B24M		41	1.0	2200	7.2	0.226	29.4
WT-JB8017B24H		68	1.6	2600	8.6	0.316	33.0
WT-JB8017B24S		105	2.5	3000	9.9	0.421	36.1
WT-JB8017B24U		139	3.3	3400	11.2	0.541	38.8
WT-JB8017B48L	48	12	0.6	1800	5.6	0.144	25.0
WT-JB8017B48M		23	1.1	2200	7.2	0.226	29.4
WT-JB8017B48H		38	1.8	2600	8.6	0.316	33.0
WT-JB8017B48S		58	2.8	3000	9.9	0.421	36.1
WT-JB8017B48U		76	3.7	3400	11.2	0.541	38.8
WT-JB8025B12L	12	92	1.1	2100	10.0	0.264	31.1
WT-JB8025B12M		156	1.9	2500	11.9	0.375	34.9
WT-JB8025B12H		243	2.9	2900	13.8	0.504	38.1
WT-JB8025B12S		358	4.3	3300	15.7	0.653	40.9
WT-JB8025B12U		459	5.5	3700	17.6	0.820	43.4
WT-JB8025B24L	24	51	1.2	2100	10.0	0.264	31.1
WT-JB8025B24M		86	2.1	2500	11.9	0.375	34.9
WT-JB8025B24H		134	3.2	2900	13.8	0.504	38.1
WT-JB8025B24S		197	4.7	3300	15.7	0.653	40.9
WT-JB8025B24U		252	6.1	3700	17.6	0.820	43.4
WT-JB8025B48L	48	28	1.3	2100	10.0	0.264	31.1
WT-JB8025B48M		47	2.3	2500	11.9	0.375	34.9
WT-JB8025B48H		73	3.5	2900	13.8	0.504	38.1
WT-JB8025B48S		108	5.2	3300	15.7	0.653	40.9
WT-JB8025B48U		139	6.7	3700	17.6	0.820	43.4
WT-JB12032B12L	12	431	5.2	2200	29.3	0.870	46.8
WT-JB12032B12M		712	8.5	2600	34.6	1.216	50.4
WT-JB12032B12H		1206	14.5	3100	41.3	1.728	54.2
WT-JB12032B12S		1889	22.7	3600	48.0	2.331	57.5
WT-JB12032B12U		2183	26.2	3900	52.0	2.735	59.2
WT-JB12032B24L	24	237	5.7	2200	29.3	0.870	46.8
WT-JB12032B24M		391	9.4	2600	34.6	1.216	50.4
WT-JB12032B24H		663	15.9	3100	41.3	1.728	54.2
WT-JB12032B24S		1039	24.9	3600	48.0	2.331	57.5
WT-JB12032B24U		1201	28.8	3900	52.0	2.735	59.2
WT-JB12032B48L	48	130	6.3	2200	29.3	0.870	46.8
WT-JB12032B48M		215	10.3	2600	34.6	1.216	50.4
WT-JB12032B48H		365	17.5	3100	41.3	1.728	54.2
WT-JB12032B48S		571	27.4	3600	48.0	2.331	57.5
WT-JB12032B48U		660	31.7	3900	52.0	2.735	59.2
WT-JC8025S110H	110	0.13/0.11	12.0/9.5	2450/2900	17/21	1.70/1.9	28.2/33
WT-JC8025B110H	110	0.13/0.11	12.0/9.5	2550/3000	18/22	1.78/2.0	28.2/33
WT-JC8025S220H	220	0.09/0.08	15.5/12.5	2450/2900	17/21	1.70/1.9	28.2/33
WT-JC8025B220H	220	0.09/0.08	15.5/12.5	2550/3000	18/22	1.78/2.0	28.2/33
WT-JC8038S110H	110	0.17/0.13	12.5/9.5	2250/2900	23/29	2.54/4.57	26/29
WT-JC8038B110H	110	0.17/0.13	12.5/9.5	2300/3000	24/30	2.70/4.82	26/29
WT-JC8038S220H	220	0.08/0.06	11.0/8.0	2350/2800	24/28	2.72/4.50	26/29
WT-JC8038B220H	220	0.08/0.06	15.5/12.5	2450/2900	25/29	2.75/4.57	26/29

Fan FAQs

What's fan PQ curve?

The PQ curve, namely the pressure-air volume curve, is a core performance graph for cooling fans. Here, P represents air pressure (units: Pa, mmH₂O), and Q represents air volume (units: CFM, m³/h). It illustrates the actual air volume a fan can deliver under different duct impedance (static pressure) conditions.A fan’s maximum air volume and pressure are measured under extreme conditions, but in real scenarios, fans operate in resistive environments. The actual air volume is determined by the intersection of the fan’s PQ curve and the system duct resistance curve, which is parabolic—resistance is proportional to the square of air volume. Only when the fan’s PQ curve matches the system resistance curve can it ensure sufficient air volume for efficient heat dissipation; otherwise, it may cause insufficient airflow and increased noise.

Why can't we just focus on the maximum air volume or maximum air pressure?

Many engineers often only focus on the maximum air volume and maximum air pressure of the fan when selecting, believing that “the larger the air volume, the better, and the higher the air pressure, the stronger”. But this kind of cognition has serious misconceptions! The maximum air volume of the fan is measured under ideal conditions of “zero impedance” (fully open air outlet); The maximum wind pressure is the test result when the air outlet is completely closed (with zero air volume). However, in practical applications, fans always operate in environments with resistance, and their actual airflow performance depends on the intersection of the PQ curve and the system resistance curve.

How to achieve precise matching between fan PQ curve and system resistance curve?

The system air duct also has a resistance curve, which is usually parabolic in shape, meaning that the resistance is proportional to the square of the air volume – the larger the air volume, the more rapidly the resistance increases. The core of selection lies in accurately finding the intersection point between the fan PQ curve and the system resistance curve. This intersection directly determines: The actual output air volume of the fan in the system; Can it meet the cooling needs of the equipment; Whether the operation process is stable, quiet, and efficient. If the matching is successful, the heat dissipation efficiency will be greatly improved and the equipment will run smoothly; On the contrary, it will lead to insufficient air flow, increased noise, and continuous accumulation of heat.

How to Reasonably Match "Wind Pressure+Impedance" Practical Steps

Evaluate the system’s air duct resistanceSimulation modeling: Step1,using professional software such as CFD to simulate the system’s air duct;Empirical judgment: For example, the combination of high-density radiators and filter screens usually has a resistance of 100-150Pa;Real machine testing: Use differential pressure gauges and anemometers to directly measure the actual wind resistance of the system.Step 2: Refer to the fan PQ curve diagramRequest the PQ curve of the fan from the supplier or check it on the official website;Confirm whether the air volume of the fan can meet the design requirements at the corresponding point of system resistance.Step 3: Compare multiple models and select the best solutionChoose the fan model that performs best at the intersection point, which must meet the following requirements:The effective air volume meets or exceeds the minimum cooling requirements of the equipment;Leave a safety margin of 15% -30% for wind pressure;The operating range is located in the middle section of the PQ curve, avoiding working in extreme high voltage or high current areas to reduce noise and losses.

What is PWM control function of a fan?

PWM (Pulse Width Modulation) is a technology that adjusts the fan speed by controlling the current by adjusting the width of the signal. Unlike traditional voltage regulation methods, PWM control precisely controls the fan speed by adjusting the duty cycle of the signal (i.e. the ratio of high and low signal levels). This technology is widely used in cooling fans, fans, and various electric devices. The working principle of PWM control: By changing the duty cycle of the PWM signal, the operating speed of the motor is controlled. The frequency of the voltage “switch” remains unchanged during the signal cycle, and only the proportion of the “on time” to the total time is adjusted. This control method is not only precise, but also efficient and can reduce energy consumption. Main advantages: Energy saving and consumption reduction: Real time adjustment of fan speed based on equipment temperature to avoid excessive energy consumption. Noise reduction function: When the fan speed decreases, the noise also decreases, making it suitable for places with strict noise requirements. Extend service life: Accurately control wind speed, avoid frequent start stop, and reduce mechanical wear.

Application of PWM function fans in servers and data centers?

Application background of intelligent temperature control and fan management: When servers in data centers operate at full capacity for a long time, the heat generated needs to be managed through an efficient cooling system. Traditional fans may not be able to accurately adjust according to temperature changes, resulting in unnecessary high-speed operation and increased energy consumption. Solution: Fans with PWM control can be connected to the temperature control system of the data center, and the fan speed can be automatically adjusted based on the real-time temperature of the data center, ensuring efficient heat dissipation while reducing energy waste and noise pollution. Application case: Cloud computing servers: Cloud computing server clusters require 24-hour uninterrupted operation. By introducing a fan system with PWM control, the fan speed can be dynamically adjusted according to the ambient temperature and server load, reducing energy consumption while maintaining the server temperature within the optimal operating range. Large data centers: Multiple servers and network devices are placed side by side, making heat dissipation an important challenge. By controlling fans through PWM, data centers can achieve more precise temperature control management, avoiding system failures or performance degradation caused by high temperatures. Application background of intelligent temperature control and fan management: When servers in data centers operate at full capacity for a long time, the heat generated needs to be managed through an efficient cooling system. Traditional fans may not be able to accurately adjust according to temperature changes, resulting in unnecessary high-speed operation and increased energy consumption. Solution: Fans with PWM control can be connected to the temperature control system of the data center, and the fan speed can be automatically adjusted based on the real-time temperature of the data center, ensuring efficient heat dissipation while reducing energy waste and noise pollution.

Is there a minimum operating temperature limit for a fan?

Cooling fans are essential components in electronic devices, which dissipate heat by moving air to ensure the normal operation of the equipment. However, the operating temperature of cooling fans is not unlimited, they have minimum and maximum limits. The core of a cooling fan is the motor, and the coils and magnets of the motor are very sensitive to temperature. Under low temperature conditions, the lubricant of the motor may become viscous, increasing the resistance during startup and causing the motor to be difficult to start or overloaded. At high temperatures, the insulation material of the motor may degrade, increasing the risk of short circuits. For example, at -10 ° C, the viscosity of the lubricant increases by 30%, resulting in an increase in starting current. The blades and frame of a fan are usually made of plastic, metal, or other synthetic materials. These materials will expand or contract when the temperature changes. Extreme low temperatures may cause materials to become fragile and prone to rupture. Extreme high temperatures may cause material deformation, affecting the balance and efficiency of the fan. For example, the hardness of aluminum alloy increases by about 15% at -40 ° C compared to 20 ° C, while deformation may occur at 100 ° C. The blades and frame of a fan are usually made of plastic, metal, or other synthetic materials. These materials will expand or contract when the temperature changes. Extreme low temperatures may cause materials to become fragile and prone to rupture. Extreme high temperatures may cause material deformation, affecting the balance and efficiency of the fan. For example, the hardness of aluminum alloy increases by about 15% at -40 ° C compared to 20 ° C, while deformation may occur at 100 ° C; Fans dissipate heat by moving air. The density of air decreases with decreasing temperature, which reduces the airflow and heat dissipation efficiency of the fan. In low-temperature environments, fans may not provide sufficient cooling effect. At high temperatures, the heat capacity of air increases, and fans require more energy to move the same volume of hot air. For example, the density of air at 0 ° C is about 8% lower than at 40 ° C. Our cooling fans typically operate within a temperature range of -20 ° C to 70 ° C and can be customized according to customer requirements.

Is it better to have a larger air volume for the cooling fan?

Airflow, usually measured in CFM (cubic feet per minute), is an important indicator of a fan’s heat dissipation capacity. However, facing the dazzling array of cooling fans on the market, a common question is: Is it really better to have a larger air volume?Firstly, we need to understand the importance of air volume. In theory, the larger the air volume, the more air the fan moves per unit time, thereby taking away more heat. This is particularly important for high-performance CPUs and GPUs as they generate a significant amount of heat during runtime. Therefore, in these situations, a large air flow cooling fan is undoubtedly beneficial. However, air volume is not the only consideration factor. Here are some other aspects to consider:Static pressure: Although air volume is important, if the static pressure provided by the fan is insufficient, it may not be able to effectively push air through dense heat sinks or overcome other resistance inside the chassis. Noise level: Generally, the larger the air volume of a fan, the greater the noise generated during operation. If noise is a sensitive factor, then it may be necessary to find a balance between air volume and noise. Energy consumption: Fans with high air volume often require more electricity to operate, which may increase the burden on the power supply and lead to a decrease in overall energy efficiency. Compatibility: The size of the fan and the compatibility of the chassis or cooling system are also very important. A fan that is too large may not be able to be installed in certain chassis or may conflict with other components. Actual requirements: Finally, consider the actual heat dissipation needs of your device. For some low-power or low heat dissipation devices, a medium air volume fan may be sufficient. In summary, the larger the air volume of the cooling fan, the better. When choosing a fan, it should be determined based on the specific requirements of the device, compatibility of the chassis, noise tolerance, energy consumption considerations, and budget. Sometimes, a fan with medium airflow but high static pressure and high efficiency may be a more suitable choice. Only by correctly matching the requirements of fans and equipment can the best heat dissipation effect and performance be achieved.

Why are the blades of the cooling fan odd?

As an indispensable cooling component in electronic devices, the design and performance of a cooling fan directly affect the stability and service life of the device. A notable phenomenon in the design of many cooling fans is that their number of blades is almost odd, such as 5, 7, or 9. Behind this design choice, there are profound principles of physics and engineering considerations. Resonance is an important concept in physics. When the frequency of the external driving force is close to the natural frequency of the system, the system will produce significant vibrations. In a cooling fan, if the number of blades is even and arranged symmetrically, resonance may occur between the blades at a specific speed. This resonance not only causes the fan to produce huge noise, but may also damage the fan blades or bearings due to the inability to withstand excessive vibration energy. In contrast, odd numbered fan blades, due to their asymmetrical arrangement, can effectively avoid the occurrence of this resonance phenomenon, thereby improving the stability and reliability of the fan. The cooling fan requires high-speed rotation during operation, so dynamic balance is crucial to its performance. Poor dynamic balance can lead to increased fan vibration, affecting heat dissipation and even shortening fan life. The design of odd numbered fan blades helps achieve better dynamic balance. During the manufacturing process, engineers can adjust parameters such as the mass distribution, shape, and angle of the fan blades to achieve dynamic stability during rotation, reducing vibration and noise. The working principle of a cooling fan is based on aerodynamics, and the design of the fan blades directly affects the flow of air and the heat dissipation effect. Odd numbered fan blades can distribute air flow more evenly during rotation, reducing airflow interference and vortex phenomena caused by symmetrical arrangement of fan blades. This design enables the fan to more effectively remove heat from the heat source, improving heat dissipation efficiency. In addition to technical considerations, the selection of the number of cooling fan blades is also subject to a balance between design and cost. Although even numbered fan blades can achieve good heat dissipation under certain specific conditions, their complexity in the production process, difficulty in adjusting dynamic balance, and performance stability of the final product may not be as good as odd numbered fan blades. In addition, with the continuous advancement of manufacturing technology and optimization of cost control, odd blade design has become a standard configuration in the cooling fan industry, which not only meets market demand but also ensures product competitiveness and reliability.

About us

Our businesses

Thermal management

Technologies

Walmate Fans

WalmateThermal offers different types of fans

Specification

Fan FAQs

Contact Us

About Us

Follow Us:

Contact us

Quick Links
