Produce Series----WT-JC8038-02
80×80×38mm
Produce Series…….…………WT-JC8038-02
Fan Blade Material………….. PBT 94V-0
Fan Frame Material…………… PBT 94V-0
Bearing Structure …… … Double ball bearing
Operation Temperature……….…-20℃-70℃

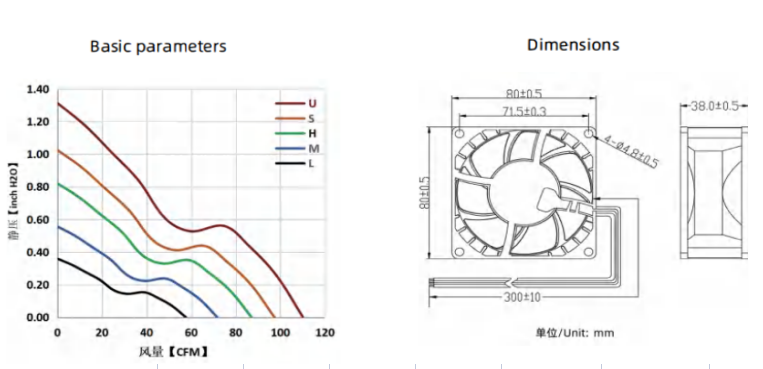

| WT-Model | WT-Reted voltage [ V ] | WT-Reted input [ W ] | WT-Air flow[ CFM ] | WT-Noise[ dBA ] | |||
| WT-JC8038B12L | 12 | 289 | 3.5 | 4500 | 57.7 | 0.359 | 39.6 |
| WT-JC8038B12M | 557 | 6.7 | 5600 | 71.8 | 0.556 | 45.3 | |
| WT-JC8038B12H | 996 | 12.0 | 6800 | 87。1 | 0.820 | 49.5 | |
| WT-JC8038B12S | 1391 | 16.7 | 7600 | 97.4 | 1.025 | 52.3 | |
| WT-JC8038B12U | 2016 | 24.2 | 8600 | 110.2 | 1.312 | 56.3 | |
| WT-JC8038B24L | 24 | 159 | 3.8 | 4500 | 57.7 | 0.359 | 39.6 |
| WT-JC8038B24M | 306 | 7.3 | 5600 | 71.8 | 0.556 | 45.3 | |
| WT-JC8038B24H | 548 | 13.2 | 6800 | 87。1 | 0.820 | 49.5 | |
| WT-JC8038B24S | 765 | 18.4 | 7600 | 97.4 | 1.025 | 52.3 | |
| WT-JC8038B24U | 1109 | 26.6 | 8600 | 110.2 | 1.312 | 56.3 | |
| WT-JC8038B48L | 48 | 87 | 4.2 | 4500 | 57.7 | 0.359 | 39.6 |
| WT-JC8038B48M | 168 | 8.1 | 5600 | 71.8 | 0.556 | 45.3 | |
| WT-JC8038B48H | 301 | 14.5 | 6800 | 87。1 | 0.820 | 49.5 | |
| WT-JC8038B48S | 421 | 20.2 | 7600 | 97.4 | 1.025 | 52.3 | |
| WT-JC8038B48U | 610 | 29.3 | 8600 | 110.2 | 1.312 | 56.3 | |
Customization Notice
The above products support customized design requirements. Please contact our sales team for details.
Note: Design changes for the above products will not be notified separately. Please refer to the specification approval document for the latest information.
