Produce Series----WT-JC8038-01

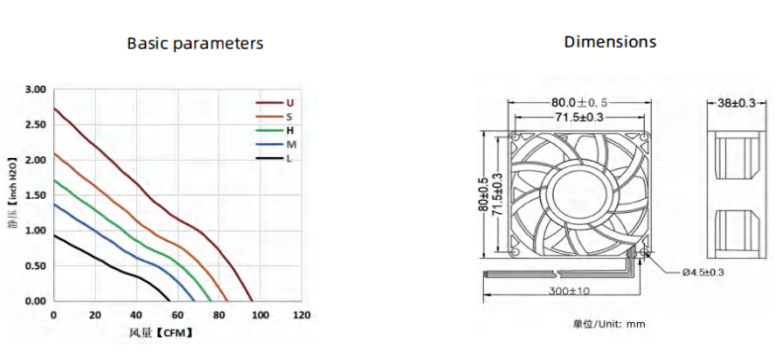

80×80×38mm
Produce Series…….…………WT-JC8038-01
Fan Blade Material………….. PBT 94V-0
Fan Frame Material…………… PBT 94V-0
Bearing Structure …… … Double ball bearing
Operation Temperature……….…-20℃-70℃
| WT-Model | WT-Reted voltage [ V ] | WT-Reted input [ W ] | WT-Air flow [ CFM ] | WT-Noise [ dBA ] | |||
| WT-JC8038B12L | 12 | 489 | 5.9 | 7000 | 56.0 | 0.929 | 52.7 |
| WT-JC8038B12M | 875 | 10.5 | 8500 | 68.0 | 1.370 | 56.9 | |
| WT-JC8038B12H | 1222 | 147.0 | 9500 | 76.0 | 1.711 | 59.3 | |
| WT-JC8038B12S | 1650 | 19.8 | 10500 | 84.0 | 2.090 | 61.5 | |
| WT-JC8038B12U | 2239 | 26.9 | 12000 | 96.0 | 2.730 | 64.4 | |
| WT-JC8038B24L | 24 | 269 | 6.5 | 7000 | 56.0 | 0.929 | 52.7 |
| WT-JC8038B24M | 481 | 11.6 | 8500 | 68.0 | 1.370 | 56.9 | |
| WT-JC8038B24H | 672 | 16.1 | 9500 | 76.0 | 1.711 | 59.3 | |
| WT-JC8038B24S | 908 | 21.8 | 10500 | 84.0 | 2.090 | 61.5 | |
| WT-JC8038B24U | 1231 | 29.6 | 12000 | 96.0 | 2.730 | 64.4 | |
| WT-JC8038B48L | 48 | 148 | 7.1 | 7000 | 56.0 | 0.929 | 52.7 |
| WT-JC8038B48M | 265 | 12.7 | 8500 | 68.0 | 1.370 | 56.9 | |
| WT-JC8038B48H | 370 | 17.7 | 9500 | 76.0 | 1.711 | 59.3 | |
| WT-JC8038B48S | 499 | 24.0 | 10500 | 84.0 | 2.090 | 61.5 | |
| WT-JC8038B48U | 677 | 32.5 | 12000 | 96.0 | 2.730 | 64.4 | |
Customization Notice
The above products support customized design requirements. Please contact our sales team for details.
Note: Design changes for the above products will not be notified separately. Please refer to the specification approval document for the latest information.
