Produce Series----WT-JC6025-01
60×60×25mm
Produce Series…….…………WT-JC6025-01
Fan Blade Material………….. PBT 94V-0
Fan Frame Material…………… PBT 94V-0
Bearing Structure …… … Double ball bearing
Operation Temperature……….…-20℃-70℃

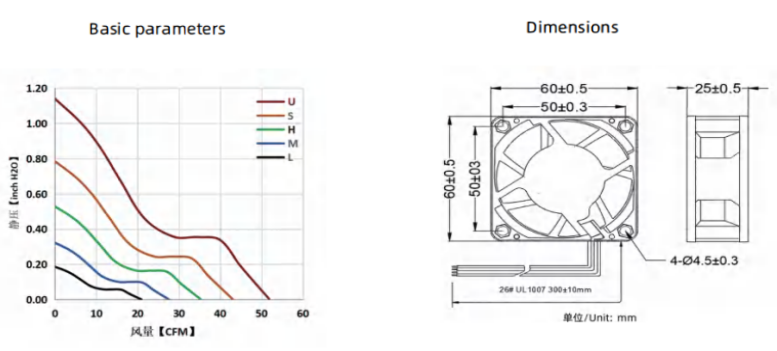

| WT-Model | WT-Reted voltage [ V ] | WT-Reted input [ W ] | WT-Air flow [ CFM ] | WT-Noise [ dBA ] | |||
| WT-JC6025B12L | 12 | 90 | 1.1 | 3800 | 20.9 | 0.186 | 33.5 |
| WT-JC6025B12M | 206 | 2.5 | 5000 | 27.5 | 0.323 | 40.4 | |
| WT-JC6025B12H | 432 | 5.2 | 6400 | 35.3 | 0.529 | 46.7 | |
| WT-JC6025B12S | 782 | 9.4 | 7800 | 43.0 | 0.785 | 52.3 | |
| WT-JC6025B12U | 1244 | 14.9 | 9400 | 51.8 | 1.141 | 58.6 | |
| WT-JC6025B24L | 24 | 50 | 1.2 | 3800 | 20.9 | 0.186 | 33.5 |
| WT-JC6025B24M | 113 | 2.7 | 5000 | 27.5 | 0.323 | 40.4 | |
| WT-JC6025B24H | 238 | 5.7 | 6400 | 35.3 | 0.529 | 46.7 | |
| WT-JC6025B24S | 430 | 10.3 | 7800 | 43.0 | 0.785 | 52.3 | |
| WT-JC6025B24U | 684 | 16.4 | 9400 | 51.8 | 1.141 | 58.6 | |
| WT-JC6025B48L | 48 | 27 | 1.3 | 3800 | 20.9 | 0.186 | 33.5 |
| WT-JC6025B48M | 62 | 3.0 | 5000 | 27.5 | 0.323 | 40.4 | |
| WT-JC6025B48H | 131 | 6.3 | 6400 | 35.3 | 0.529 | 46.7 | |
| WT-JC6025B48S | 237 | 11.4 | 7800 | 43.0 | 0.785 | 52.3 | |
| WT-JC6025B48U | 376 | 18.1 | 9400 | 51.8 | 1.141 | 58.6 | |
Customization Notice
The above products support customized design requirements. Please contact our sales team for details.
Note: Design changes for the above products will not be notified separately. Please refer to the specification approval document for the latest information.
