Produce Series----WT-JC6015-01

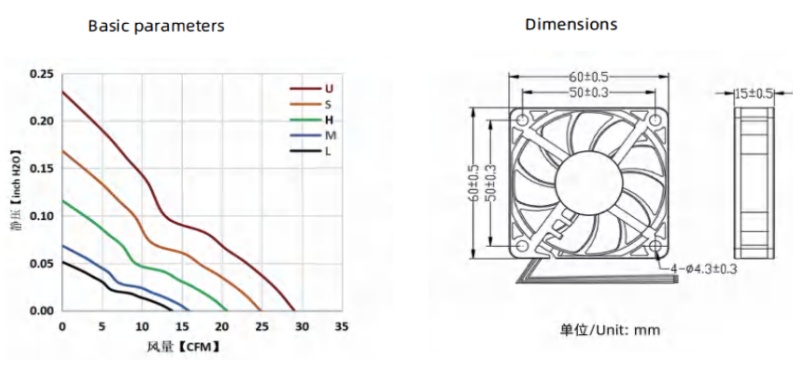

60×60×15mm
Produce Series…….…………WT-JC6015-01
Fan Blade Material………….. PBT 94V-0
Fan Frame Material…………… PBT 94V-0
Bearing Structure …… … Double ball bearing
Operation Temperature……….…-20℃-70℃
| WT-Model | WT-Reted voltage [ V ] | WT-Reted input [ W ] | WT-Air flow [ CFM ] | WT-Noise [ dBA ] | |||
| WT-JC6015B5L | 5 | 60 | 0.3 | 2600 | 13.7 | 0.052 | 19.5 |
| WT-JC6015B5M | 120 | 0.6 | 3000 | 15.9 | 0.069 | 21.8 | |
| WT-JC6015B5H | 200 | 1.0 | 3900 | 20.6 | 0.116 | 27.5 | |
| WT-JC6015B5S | 380 | 1.9 | 4700 | 24.8 | 0.169 | 32.4 | |
| WT-JC6015B5U | 660 | 3.3 | 5500 | 29.1 | 0.231 | 35.8 | |
| WT-JC6015B12L | 12 | 28 | 0.3 | 2600 | 13.7 | 0.052 | 19.5 |
| WT-JC6015B12M | 50 | 0.6 | 3000 | 15.9 | 0.069 | 21.8 | |
| WT-JC6015B12H | 83 | 1.0 | 3900 | 20.6 | 0.116 | 27.5 | |
| WT-JC6015B12S | 158 | 1.9 | 4700 | 24.8 | 0.169 | 32.4 | |
| WT-JC6015B12U | 275 | 3.3 | 5500 | 29.1 | 0.231 | 35.8 | |
| WT-JC6015B24L | 24 | 13 | 0.3 | 2600 | 13.7 | 0.052 | 19.5 |
| WT-JC6015B24M | 25 | 0.6 | 3000 | 15.9 | 0.069 | 21.8 | |
| WT-JC6015B24H | 42 | 1.0 | 3900 | 20.6 | 0.116 | 27.5 | |
| WT-JC6015B24S | 79 | 1.9 | 4700 | 24.8 | 0.169 | 32.4 | |
| WT-JC6015B24U | 138 | 3.3 | 5500 | 29.1 | 0.231 | 35.8 | |
Customization Notice
The above products support customized design requirements. Please contact our sales team for details.
Note: Design changes for the above products will not be notified separately. Please refer to the specification approval document for the latest information.
