Produce Series----WT-JC6010-01

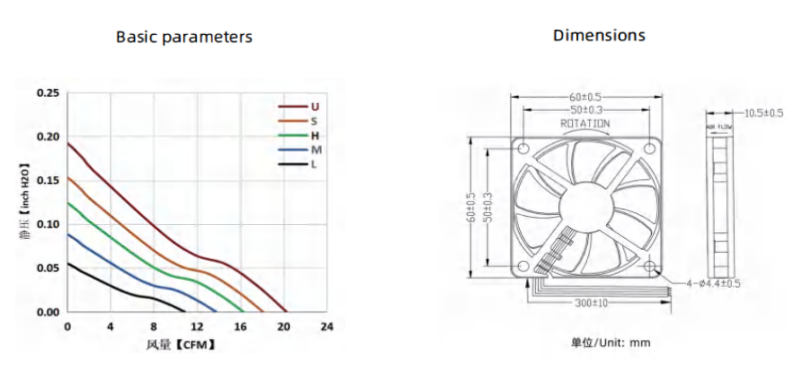

60×60×10mm
Produce Series…….…………WT-JC6010-01
Fan Blade Material………….. PBT 94V-0
Fan Frame Material…………… PBT 94V-0
Bearing Structure …… … Double ball bearing
Operation Temperature……….…-20℃-70℃
WT-Model | WT-Reted voltage [ V ] | WT-Reted input [ W ] | WT-Air flow [ CFM ] | WT-Noise [ dBA ] | |||
WT-JC6010B5L | 5 | 50 | 0.30 | 3000 | 10.9 | 0.056 | 22.2 |
WT-JC6010B5M | 80 | 0.40 | 3800 | 13.8 | 0.089 | 27.3 | |
WT-JC6010B5H | 120 | 0.60 | 4500 | 16.3 | 0.125 | 31.0 | |
WT-JC6010B5S | 180 | 0.90 | 5000 | 18.1 | 0.155 | 32.9 | |
WT-JC6010B5U | 280 | 1.40 | 5600 | 20.3 | 0.194 | 35.0 | |
WT-JC6010B12L | 12 | 25 | 0.30 | 3000 | 10.9 | 0.056 | 22.2 |
WT-JC6010B12M | 33 | 0.40 | 3800 | 13.8 | 0.089 | 27.3 | |
WT-JC6010B12H | 58 | 0.70 | 4500 | 16.3 | 0.125 | 31.0 | |
WT-JC6010B12S | 83 | 1.00 | 5000 | 18.1 | 0.155 | 32.9 | |
WT-JC6010B12U | 125 | 1.50 | 5600 | 20.3 | 0.194 | 35.0 | |
WT-JC6010B24L | 24 | 14 | 0.33 | 3000 | 10.9 | 0.056 | 22.2 |
WT-JC6010B24M | 40 | 0.44 | 3800 | 13.8 | 0.089 | 27.3 | |
WT-JC6010B24H | 32 | 0.77 | 4500 | 16.3 | 0.125 | 31.0 | |
WT-JC6010B24S | 50 | 1.20 | 5000 | 18.1 | 0.155 | 32.9 | |
WT-JC6010B24U | 83 | 2.00 | 5600 | 20.3 | 0.194 | 35.0 |

Customization Notice
The above products support customized design requirements. Please contact our sales team for details.
Note: Design changes for the above products will not be notified separately. Please refer to the specification approval document for the latest information.
