Produce Series----WT-JC5215-01

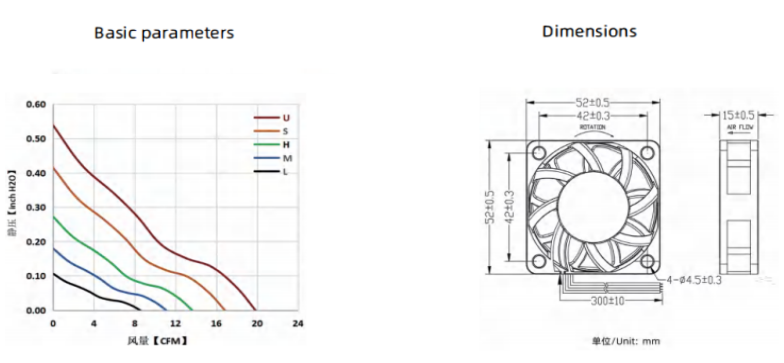

52×52×15mm
Produce Series…….…………WT-JC5215-01
Fan Blade Material………….. PBT 94V-0
Fan Frame Material…………… PBT 94V-0
Bearing Structure …… … Double ball bearing
Operation Temperature……….…-20℃-70℃
| WT-Model | WT-Reted voltage [ V ] | WT-Reted input [ W ] | WT-Air flow [ CFM ] | WT-Noise [ dBA ] | |||
| WT-JC5215B12L | 12 | 42 | 0.5 | 4000 | 8.9 | 0.107 | 20 |
| WT-JC5215B12M | 50 | 0.6 | 5200 | 11.6 | 0.180 | 30.7 | |
| WT-JC5215B12H | 92 | 1.1 | 6400 | 14.2 | 0.273 | 34.5 | |
| WT-JC5215B12S | 133 | 1.6 | 7900 | 17.6 | 0.416 | 39.0 | |
| WT-JC5215B12U | 192 | 2.3 | 9000 | 20.7 | 0.540 | 42.6 | |
| WT-JC5215B24L | 24 | 25 | 0.6 | 4000 | 8.9 | 0.107 | 20 |
| WT-JC5215B24M | 29 | 0.7 | 5200 | 11.6 | 0.180 | 30.7 | |
| WT-JC5215B24H | 50 | 1.2 | 6400 | 14.2 | 0.273 | 34.5 | |
| WT-JC5215B24S | 71 | 1.7 | 7900 | 17.6 | 0.416 | 39.0 | |
| WT-JC5215B24U | 100 | 2.4 | 9000 | 20.7 | 0.540 | 42.6 | |
| WT-JC5215B48L | 48 | 15 | 0.7 | 4000 | 8.9 | 0.107 | 20 |
| WT-JC5215B48M | 17 | 0.8 | 5200 | 11.6 | 0.180 | 30.7 | |
| WT-JC5215B48H | 27 | 1.3 | 6400 | 14.2 | 0.273 | 34.5 | |
| WT-JC5215B48S | 38 | 1.8 | 7900 | 17.6 | 0.416 | 39.0 | |
| WT-JC5215B48U | 52 | 2.5 | 9000 | 20.7 | 0.540 | 42.6 | |
Customization Notice
The above products support customized design requirements. Please contact our sales team for details.
Note: Design changes for the above products will not be notified separately. Please refer to the specification approval document for the latest information.
