Produce Series----WT-JC5010-01

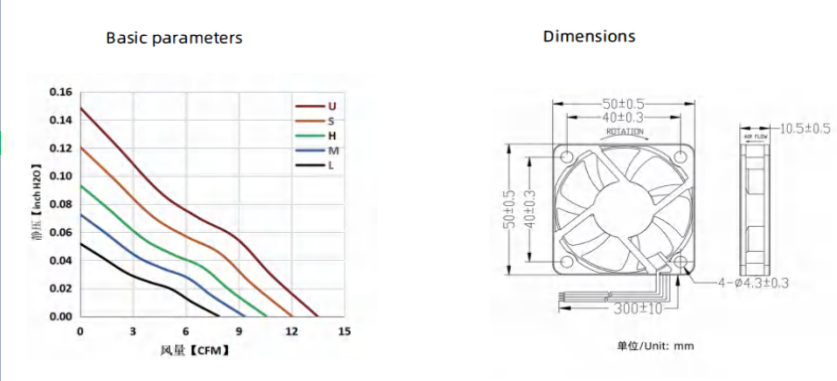

50×50×10mm
Produce Series…….…………WT-JC5010-01
Fan Blade Material………….. PBT 94V-0
Fan Frame Material…………… PBT 94V-0
Bearing Structure …… … Double ball bearing
Operation Temperature……….…-20℃-70℃
WT-Model | WT-Reted voltage [ V ] | WT-Reted input [ W ] | WT-Air flow [ CFM ] | WT-Noise [ dBA ] | |||
WT-JC5010B5L | 5 | 80 | 0.40 | 3800 | 7.9 | 0.053 | 21.5 |
WT-JC5010B5M | 96 | 0.48 | 4500 | 9.4 | 0.074 | 25.2 | |
WT-JC5010B5H | 160 | 0.80 | 5100 | 10.6 | 0.095 | 27.9 | |
WT-JC5010B5S | 200 | 1.00 | 5800 | 12.1 | 0.122 | 30.7 | |
WT-JC5010B5U | 260 | 1.30 | 6500 | 13.5 | 0.151 | 33.1 | |
WT-JC5010B12L | 12 | 33 | 0.40 | 3800 | 7.9 | 0.053 | 21.5 |
WT-JC5010B12M | 40 | 0.48 | 4500 | 9.4 | 0.074 | 25.2 | |
WT-JC5010B12H | 67 | 0.80 | 5100 | 10.6 | 0.095 | 27.9 | |
WT-JC5010B12S | 83 | 1.00 | 5800 | 12.1 | 0.122 | 30.7 | |
WT-JC5010B12U | 108 | 1.30 | 6500 | 13.5 | 0.151 | 33.1 | |
WT-JC5010B24L | 24 | 21 | 0.40 | 3800 | 7.9 | 0.053 | 21.5 |
WT-JC5010B24M | 40 | 0.48 | 4500 | 9.4 | 0.074 | 25.2 | |
WT-JC5010B24H | 42 | 0.80 | 5100 | 10.6 | 0.095 | 27.9 | |
WT-JC5010B24S | 50 | 1.00 | 5800 | 12.1 | 0.122 | 30.7 | |
WT-JC5010B24U | 54 | 1.30 | 6500 | 13.5 | 0.151 | 33.1 |

Customization Notice
The above products support customized design requirements. Please contact our sales team for details.
Note: Design changes for the above products will not be notified separately. Please refer to the specification approval document for the latest information.
