Produce Series----WT-JC4028-01

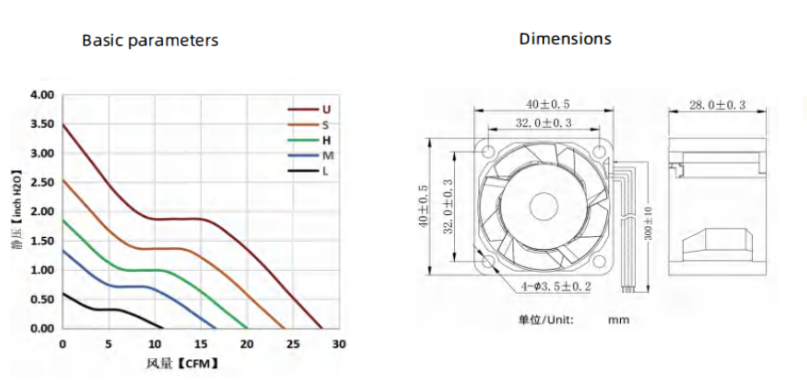

40×40×28mm
Produce Series…….…………WT-JC4028-01
Fan Blade Material………….. PBT 94V-0
Fan Frame Material…………… PBT 94V-0
Bearing Structure …… … Double ball bearing
Operation Temperature……….…-20℃-70℃
| WT-Model | WT-Reted voltage [ V ] | WT-Reted input [ W ] | WT-Air flow [ CFM ] | WT-Noise [ dBA ] | |||
| WT-JC4028B5L | 5 | 143 | 1.71 | 9500 | 10.86 | 0.598 | 39.6 |
| WT-JC4028B5M | 342 | 1.80 | 14500 | 16.57 | 1.334 | 48.6 | |
| WT-JC4028B5H | 428 | 5.13 | 17500 | 20 | 1.854 | 53.5 | |
| WT-JC4028B5S | 694 | 8.32 | 21000 | 24 | 2.543 | 60.3 | |
| WT-JC4028B5U | 1188 | 14.25 | 24600 | 28.12 | 3.489 | 63.7 | |
| WT-JC4028B12L | 24 | 75 | 1.80 | 9500 | 10.86 | 0.598 | 39.6 |
| WT-JC4028B12M | 180 | 4.32 | 14500 | 16.57 | 1.334 | 48.6 | |
| WT-JC4028B12H | 225 | 5.40 | 17500 | 20 | 1.854 | 53.5 | |
| WT-JC4028B12S | 365 | 8.76 | 21000 | 24 | 2.543 | 60.3 | |
| WT-JC4028B12U | 625 | 15.00 | 24600 | 28.12 | 3.489 | 63.7 | |
| WT-JC4028B24L | 48 | 50 | 2.40 | 9500 | 10.86 | 0.598 | 39.6 |
| WT-JC4028B24M | 105 | 5.04 | 14500 | 16.57 | 1.334 | 48.6 | |
| WT-JC4028B24H | 150 | 7.20 | 17500 | 20 | 1.854 | 53.5 | |
| WT-JC4028B24S | 200 | 9.60 | 21000 | 24 | 2.543 | 60.3 | |
| WT-JC4028B24U | 310 | 14.88 | 24600 | 28.12 | 3.489 | 63.7 | |
Customization Notice
The above products support customized design requirements. Please contact our sales team for details.
Note: Design changes for the above products will not be notified separately. Please refer to the specification approval document for the latest information.
