Produce Series----WT-JC4010-01

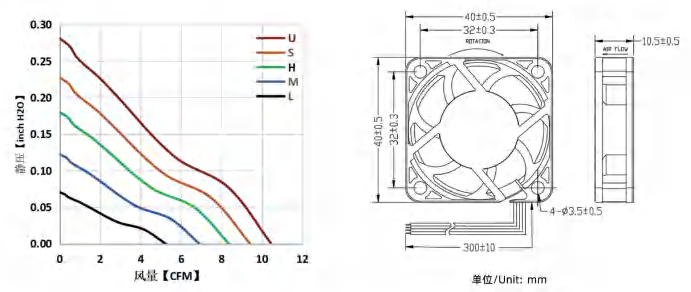

40×40×10mm
Produce Series…….…………WT-JC4010-01
Fan Blade Material………….. PBT 94V-0
Fan Frame Material…………… PBT 94V-0
Bearing Structure …… … Double ball bearing
Operation Temperature……….…-20℃-70℃
| WT-Model | WT-Reted voltage [ V ] | WT-Reted input [ W ] | WT-Air flow [ CFM ] | WT-Noise [ dBA ] | |||
| WT-JC4010B5L | 5 | 260 | 0.30 | 5000 | 5.2 | 0.071 | 21.4 |
| WT-JC4010B5M | 100 | 0.50 | 6600 | 6.9 | 0.123 | 27.4 | |
| WT-JC4010B5H | 180 | 0.90 | 8000 | 8.4 | 0.181 | 31.5 | |
| WT-JC4010B5S | 220 | 1.10 | 9000 | 9.4 | 0.229 | 34.0 | |
| WT-JC4010B5U | 300 | 1.50 | 10000 | 10.5 | 0.282 | 36.3 | |
| WT-JC4010B12L | 12 | 28 | 0.33 | 5000 | 5.2 | 0.071 | 21.4 |
| WT-JC4010B12M | 46 | 0.55 | 6600 | 6.9 | 0.123 | 27.4 | |
| WT-JC4010B12H | 83 | 1.00 | 8000 | 8.4 | 0.181 | 31.5 | |
| WT-JC4010B12S | 100 | 1.20 | 9000 | 9.4 | 0.229 | 34.0 | |
| WT-JC4010B12U | 133 | 1.60 | 10000 | 10.5 | 0.282 | 36.3 | |
| WT-JC4010B24L | 24 | 15 | 0.36 | 5000 | 5.2 | 0.071 | 21.4 |
| WT-JC4010B24M | 40 | 0.55 | 6600 | 6.9 | 0.123 | 27.4 | |
| WT-JC4010B24H | 42 | 1.00 | 8000 | 8.4 | 0.181 | 31.5 | |
| WT-JC4010B24S | 50 | 1.20 | 9000 | 9.4 | 0.229 | 34.0 | |
| WT-JC4010B24U | 71 | 1.70 | 10000 | 10.5 | 0.282 | 36.3 | |
Customization Notice
The above products support customized design requirements. Please contact our sales team for details.
Note: Design changes for the above products will not be notified separately. Please refer to the specification approval document for the latest information.
