Produce Series----WT-JC3010-01

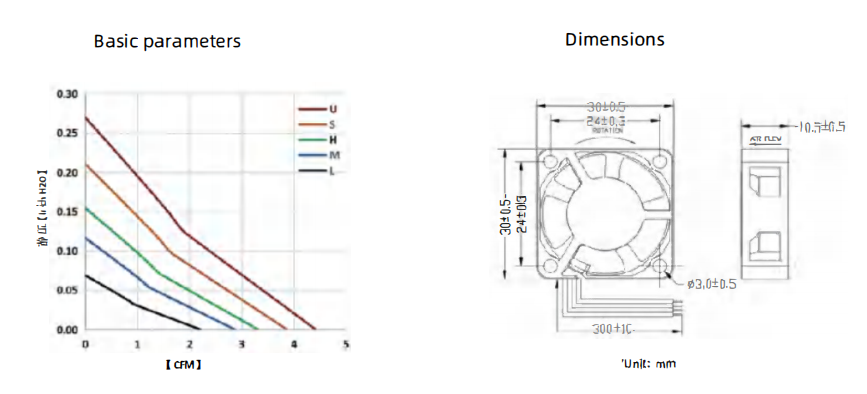

30×30×10mm
Produce Series…….…………WT-JC3010-01
Fan Blade Material………….. PBT 94V-0
Fan Frame Material…………… PBT 94V-0
Bearing Structure …… … Double ball bearing
Operation Temperature……….…-20℃-70℃
| Model | Reted voltage [ V ] | Reted input [ W ] | Air flow [ CFM ] | Noise [ dBA ] | |||
| WT-JC3010B5L | 5 | 30 | 0.15 | 6000 | 2.2 | 0.070 | 18.5 |
| WT-JC3010B5M | 50 | 0.25 | 7800 | 2.9 | 0.118 | 21.9 | |
| WT-JC3010B5H | 70 | 0.35 | 9000 | 3.3 | 0.157 | 24.0 | |
| WT-JC3010B5S | 140 | 0.70 | 10500 | 3.9 | 0.214 | 26.2 | |
| WT-JC3010B5U | 200 | 1.00 | 12000 | 4.5 | 0.274 | 31.0 | |
| WT-JC3010B12L | 12 | 13 | 0.15 | 6000 | 2.2 | 0.070 | 18.5 |
| WT-JC3010B12M | 21 | 0.25 | 7800 | 2.9 | 0.118 | 21.9 | |
| WT-JC3010B12H | 29 | 0.35 | 9000 | 3.3 | 0.157 | 24.0 | |
| WT-JC3010B12S | 50 | 0.60 | 10500 | 3.9 | 0.214 | 26.2 | |
| WT-JC3010B12U | 83 | 1.00 | 12000 | 4.5 | 0.274 | 31.0 | |
| WT-JC3010B24S | 24 | 33 | 0.80 | 10500 | 3.9 | 0.214 | 26.2 |
| WT-JC3010B24U | 46 | 1.10 | 12000 | 4.5 | 0.274 | 31.0 | |
Customization Notice
The above products support customized design requirements. Please contact our sales team for details.
Note: Design changes for the above products will not be notified separately. Please refer to the specification approval document for the latest information.
