Produce Series---WT-JC12025-03

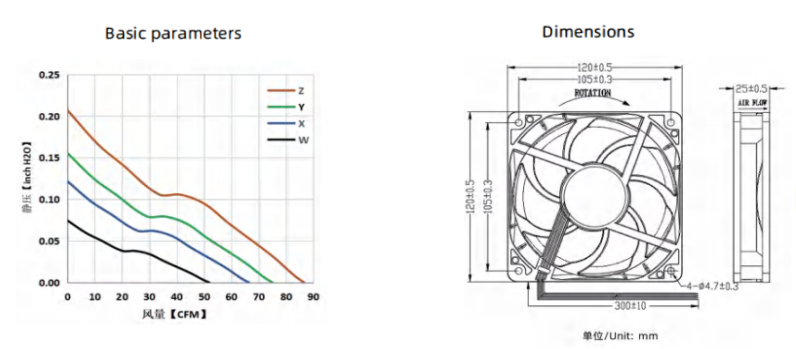

120×120×25mm
Produce Series…….…………WT-JC12025-03
Fan Blade Material………….. PBT 94V-0
Fan Frame Material…………… PBT 94V-0
Bearing Structure …… … Double ball bearing
Operation Temperature……….…-20℃-70℃
| WT-Model | WT-Reted voltage [ V ] | WT-Reted input[ W ] | WT-Air flow[ CFM ] | WT-Noise[ dBA ] | |||
| WT-JC12025B12L | 12 | 92 | 1.1 | 1800 | 51.9 | 0.075 | 22.9 |
| WT-JC12025B12M | 117 | 1.4 | 2300 | 66.3 | 0.122 | 29.2 | |
| WT-JC12025B12H | 150 | 1.8 | 2600 | 74.9 | 0.156 | 32.3 | |
| WT-JC12025B12S | 200 | 2.4 | 3000 | 86.5 | 0.208 | 37.0 | |
| WT-JC12025B24L | 24 | 125 | 1.2 | 1800 | 51.9 | 0.075 | 22.9 |
| WT-JC12025B24M | 158 | 1.5 | 2300 | 66.3 | 0.122 | 29.2 | |
| WT-JC12025B24H | 225 | 1.9 | 2600 | 74.9 | 0.156 | 32.3 | |
| WT-JC12025B24S | 304 | 2.5 | 3000 | 86.5 | 0.208 | 37.0 | |
| WT-JC12025B48L | 48 | 69 | 1.3 | 1800 | 51.9 | 0.075 | 22.9 |
| WT-JC12025B48M | 83 | 1.6 | 2300 | 66.3 | 0.122 | 29.2 | |
| WT-JC12025B48H | 124 | 2.1 | 2600 | 74.9 | 0.156 | 32.3 | |
| WT-JC12025B48S | 156 | 2.8 | 3000 | 86.5 | 0.208 | 37.0 | |
Customization Notice
The above products support customized design requirements. Please contact our sales team for details.
Note: Design changes for the above products will not be notified separately. Please refer to the specification approval document for the latest information.
