Produce Series----WT-JC12025-01

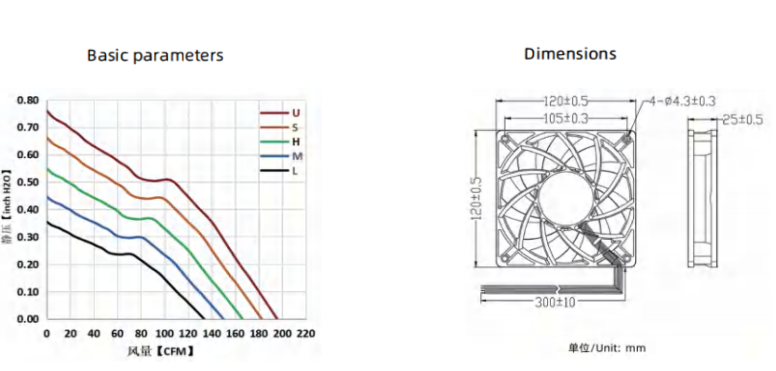

120×120×25mm
Produce Series…….…………WT-JC12025-01
Fan Blade Material………….. PBT 94V-0
Fan Frame Material…………… PBT 94V-0
Bearing Structure …… … Double ball bearing
Operation Temperature……….…-20℃-70℃
| WT-Model | WT-Reted voltage [ V ] | WT-Reted input[ W ] | WT-Air flow[ CFM ] | WT-Noise[ dBA ] | |||
| WT-JC12025B12L | 12 | 567 | 6.8 | 4100 | 133.6 | 0.355 | 49.9 |
| WT-JC12025B12M | 933 | 11.2 | 4600 | 149.9 | 0.447 | 52.9 | |
| WT-JC12025B12H | 1317 | 15.8 | 5000 | 162.9 | 0.528 | 55.3 | |
| WT-JC12025B12S | 1708 | 20.5 | 5400 | 176.0 | 0.615 | 56.9 | |
| WT-JC12025B12U | 2300 | 27.6 | 5700 | 185.7 | 0.686 | 58.1 | |
| WT-JC12025B24L | 24 | 292 | 7.0 | 4100 | 133.6 | 0.355 | 49.9 |
| WT-JC12025B24M | 479 | 11.5 | 4600 | 149.9 | 0.447 | 52.9 | |
| WT-JC12025B24H | 667 | 16.0 | 5000 | 162.9 | 0.528 | 55.3 | |
| WT-JC12025B24S | 875 | 21.0 | 5400 | 176.0 | 0.615 | 56.9 | |
| WT-JC12025B24U | 1300 | 31.2 | 5700 | 185.7 | 0.686 | 58.1 | |
| WT-JC12025B48L | 48 | 160 | 7.7 | 4100 | 133.6 | 0.355 | 49.9 |
| WT-JC12025B48M | 265 | 12.7 | 4600 | 149.9 | 0.447 | 52.9 | |
| WT-JC12025B48H | 367 | 17.6 | 5000 | 162.9 | 0.528 | 55.3 | |
| WT-JC12025B48S | 481 | 23.1 | 5400 | 176.0 | 0.615 | 56.9 | |
| WT-JC12025B48U | 625 | 30.0 | 5700 | 185.7 | 0.686 | 58.1 | |
Customization Notice
The above products support customized design requirements. Please contact our sales team for details.
Note: Design changes for the above products will not be notified separately. Please refer to the specification approval document for the latest information.
